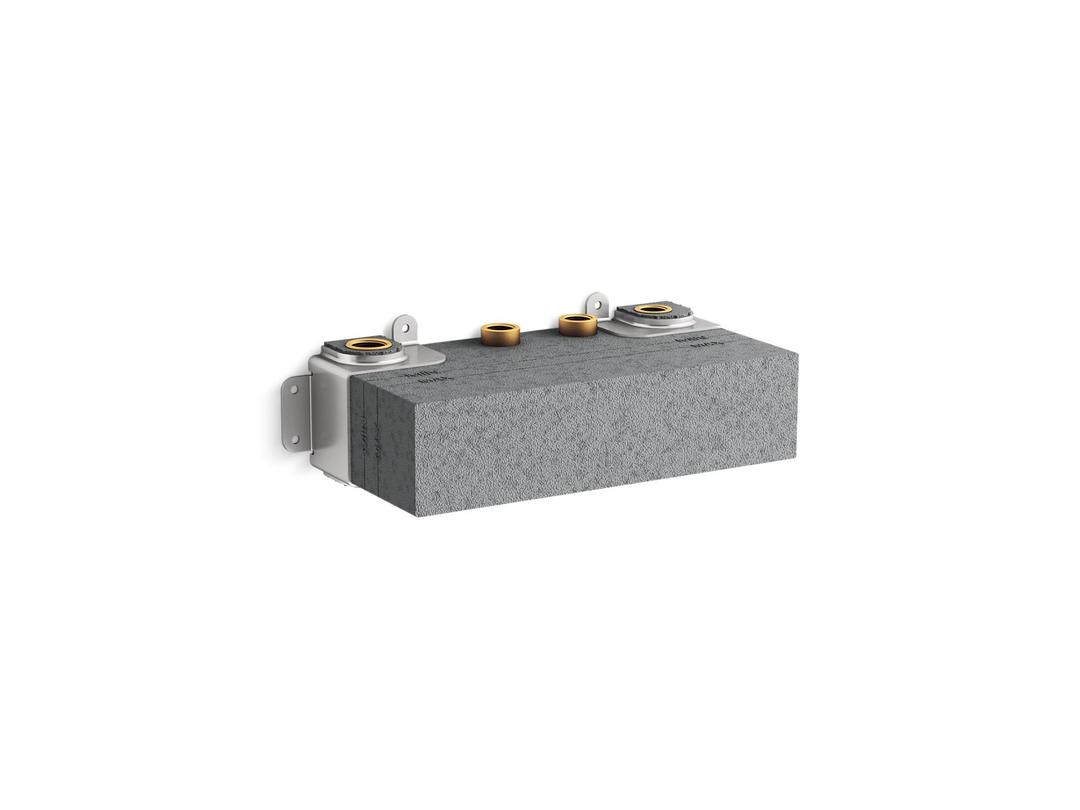

Three-port recessed mechanical thermostatic valve

Name: Three-port recessed mechanical thermostatic valve
Brand: Kohler
SKU: 39014-NA
Price: 776.80 USD
Availability: OutOfStock

Item #: 39014-NA

UPC: *195711260758

$776.80MSRP

Checking availability…

Thermostatic KOHLER® Anthem technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class Anthem thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

Three-port recessed mechanical thermostatic valve

Features

High-flow thermostatic mixing valve
Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
3/4" female NPT inlet connections
1/2" female NPT outlet connections
Service stops with integral filters
Antiscald protection
Integrated adjustable high-temperature limit stop to control maximum water temperature
Adjustable comfort setting (preset at approximately 104°F)
Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
